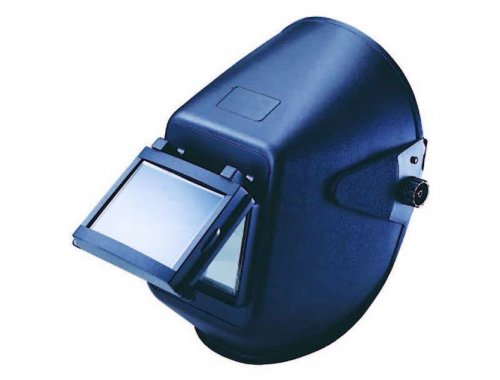

3.6" x 4.4" Flip-Front Welding Helmet | Polypropylene Shell | CE EN175F (Non-US Market)

Item

Description

The 3.6-inch by 4.4-inch Flip-Front Welding Helmet is a heavy-duty safety solution engineered for heavy-fabrication welders who require an enhanced field of view without sacrificing total facial coverage. Molded from premium-grade, heat-stabilized Polypropylene (PP), this high-impact shell functions as a resilient barrier against radiant arc heat, hazardous ultraviolet/infrared emissions, and aggressive flying spatter common in industrial environments.

The core advantage of this model is its expanded 3.6-inch by 4.4-inch (90 mm x 110 mm) flip-up front window. Compared to standard narrow-format welding ports, this larger optical aperture provides a broader peripheral and downward visual range. This allows welders to evaluate complex weld setups and track long weld pools with minimal head movement. When flipped up, the clear interior window transforms the unit into a highly capable chipping and grinding shield, fully backed by its official CE EN175F certification for low-energy high-speed particle impacts.

Key Features

Expanded 3.6-inch x 4.4-inch Field of View: The larger window dimensions significantly improve spatial clarity, reducing eye strain and helping welders execute precise multi-pass welds.
Patented Flip-Up Mechanism: The integrated friction hinge allows operators to effortlessly raise the dark shade window to grind or clean slag while keeping their face continuously protected behind the clear inner safety window.
High-Impact Polypropylene Hood: Specifically synthesized to resist heavy weld spatter adhesion, crack propagation, and thermal sagging across long shifts in blistering workshop temperatures.
Ergonomic MU-33204 Ratchet Suspension: Shipped default with our premium gear-adjustment ratchet harness, providing balanced weight distribution and a personalized, snug fit that reduces neck fatigue.
Global Compliance & Certification: Fully verified and marked to satisfy international safety criteria under the European CE EN175F standard.

B2B Market Restriction: Due to regional patent and licensing protections, this specific product assembly configuration is strictly prohibited for sale, distribution, or re-export into the United States.

Functions and Applications

Heavy industrial welding and fabrication operations.
Shipbuilding, pipeline construction, and structural steelwork.
Complex multi-pass welding setups where peripheral vision is essential.
Chipping and grinding tasks when the front window is flipped up.

Specifications

Item	Details
Shell Composition Matrix	High-Impact / Flame-Retardant Polypropylene (PP)
Operational Framework	Patented Large-Format Flip-Front Assembly
Window Dimensions	3.6-inch x 4.4-inch (90 mm x 110 mm)
Default Headgear Harness	MU-33204 Precision Gear-Dial Ratchet Suspension
Lens Options & Settings	Default: Shell & Harness Only \| Optional: MU-32208L with Shade #11 Green Lens
Safety Certification	CE EN175F Certified
Geographic Restrictions	Not Available for United States Import/Distribution

Frequently Asked Questions

Q: What is the key functional benefit of the larger 3.6-inch by 4.4-inch window?

A: The larger window format provides a significantly wider viewing area compared to standard models, allowing for superior peripheral tracking of the workpiece and weld seam without constant head-turning.

Q: Does the inner chipping window remain locked in place when the outer dark lens is flipped up?

A: Yes, the patented flip-front mechanism ensures that the inner clear polycarbonate shield remains firmly sealed within the helmet framework to provide continuous impact protection during grinding.
