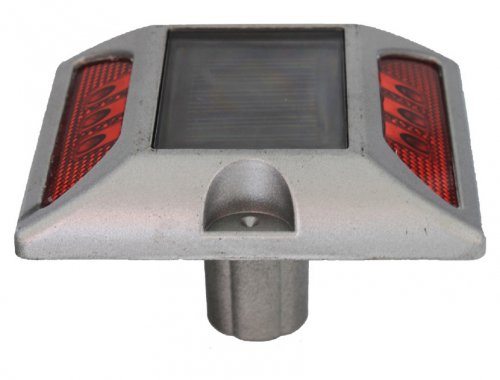

Name: Aluminum Frame Road Stud | IP68 Solar Road Marker with 6 LEDs | MUSSE
Brand: MUSSE
SKU: MU-24110
Availability: InStock

Item

Description

The Aluminum Frame Road Stud is designed for roadway visibility and traffic marking applications where durable housing and reliable outdoor performance are important. Its solar-powered structure allows independent operation for road delineation, lane guidance, and other outdoor safety uses.

This model combines a monocrystalline solar panel, high-temperature Ni-MH battery, and 6 high-brightness LEDs inside an aluminum frame with acrylic reflector and mixed epoxy filler. It also features IP68 protection, long visual distance, and strong static load resistance for demanding installation environments.

Key Features of Aluminum Frame Road Stud

Solar Charging System Equipped with a 5V/90mA monocrystalline solar panel for self-powered operation.
6 High-Brightness LEDs Uses 6 pcs 5 mm LEDs for roadway marking and visibility support.
IP68 Protection Product information lists IP68 protection level for outdoor use.
Long Visual Distance The visible distance is listed as over 1500 meters.
Dual Lighting Modes Supports flashing at 90 times per minute or stable operation.
Heavy-Duty Load Resistance Static weight resistance is listed as over 30 tons.

Materials and Outdoor Performance

Aluminum Frame Built with an aluminum frame for durable road safety applications.
Acrylic Reflector Includes an acrylic reflector with mixed epoxy filler construction.
Wide Temperature Range Working temperature is listed as -20℃ to +80℃.
Service Life Product information lists a lifespan of 4 years.

Suggested Uses

Roadway Guidance Suitable for road marking and lane delineation applications.
Outdoor Traffic Safety Designed for environments requiring waterproof and durable solar markers.
Heavy Load Areas Appropriate for road surfaces exposed to high static loads.

Specification of Aluminum Frame Road Stud

Item	Details
Product name	Aluminum Frame Road Stud
Type	Solar-powered road stud
Solar panel	5V / 90mA monocrystalline
Storage battery	1.2V / 750mAh high-temperature Ni-MH battery
Lighting time	70 hours after fully charged
Work mode	Flashing at 90 times per minute or stable
LED color	Red, yellow, white
LED quantity	6 pcs, 5 mm high-brightness LEDs
Visual distance	Over 1500 meters
Lifespan	4 years
Work temperature	-20℃ to +80℃
Material	Acrylic reflector and aluminum frame with mixed epoxy filler
Product size	125 x 105 x 25 mm
Leg	50 mm
Net weight	500 ± 10 g
Protection level	IP68
Weight resistance in static	Over 30 tons
Suggested use	Outdoor road and traffic visibility guidance

Frequently Asked Questions

Q: What protection level is listed for the Aluminum Frame Road Stud?

A: The product information lists IP68 protection level.

Q: What kind of power system does this road stud use?

A: It uses a 5V/90mA monocrystalline solar panel and a 1.2V/750mAh high-temperature Ni-MH battery.

Q: What are the lighting options for this product?

A: The road stud can flash at 90 times per minute or operate in stable mode.

Q: What are the size and load resistance of this model?

A: The listed product size is 125 x 105 x 25 mm with a 50 mm leg, and the static weight resistance is over 30 tons.
